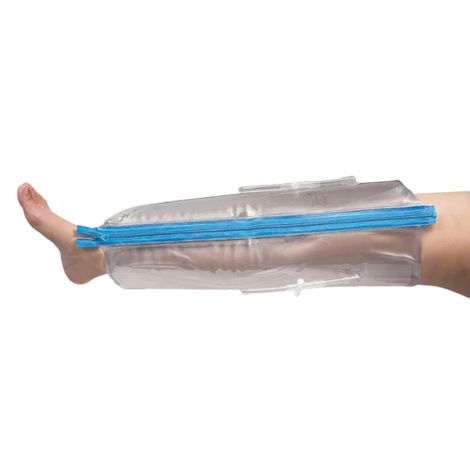

Urias Air Splint

Brand/Manufacturer: ARDEN-MEDICAL

FSA Approved

Item NC13004 is backorder and will be available to purchase once it is back in stock.

Urias Pressure Splints or air splint for arm are made to be used to provide easy, effective positioning of upper and lower extremities. Air Splint has soft inner layer wich totally adapts to the body when it is put to the limb, offering even, all-over compression. Pressure during inflation shouldn't be higher than 40 mmHg. Air can be dispersed evenly around the extremity with single-chamber splints, reducing edema.

Why Choose Air Splint For Arm

Latex-free
PVC outer and inner lining
High-Frequency Heat Welded Seams
2 x Inflation Tubes with Inlet Taps
Width: 15.5cm (6.10 inches approx.)
Length: 15cm (5.9 inches approx.)

Item #	Desc	Pkg	Price
NC13002	Half Arm, Single Chamber	Each	$50.95 $39.19
NC13003	Elbow, Single Chamber	Each	$65.01 $48.19
NC13004	Hand, Double Chambers	Each	$65.01 $48.19
NC13009	Hand/Wrist, Double Chambers	Each	$65.15 $48.30
NC13013-F	Foot, Single Chamber	Each	$79.75 $59.11
70-102-0	Shorter Arm (70cm) , Single Chamber	Each	$85.73 $63.54
NC13013-60	Small Leg (no foot), Double Chamber	Each	$103.25 $76.52
NC13000	Long Arm (80cm), Single Chamber	Each	$113.35 $87.19
NC13013-70	Large Leg (no foot), Double Chamber	Each	$129.25 $95.09

Features of Urias Air Splint

Urias Air Splint is made of durable PVC sheeting with an inner layer that provides superior molding around the limb
Apply to limb and inflate
Pressure should not exceed 40mmHg
Measurement is the length of the splint before inflation
To size, measure the length of the extremity
Measure circumference for Bariatric model
Single chamber design allows for even air distribution around the extremity used for edema reduction
Double chamber design allows for varying amounts of pressure in each chamber to assist with contracture reduction and tone control

What is an Air Splint used for?

Air splints immobilize, cushion and protect injured limbs so that the victim can be transported safely and easily. These splints are washable, reusable and can be used during X-raying.

When to use Air Splint For Arm?

Stroke
Head injury
MS
CP
For muscle facilitation in neurological rehab
Post surgery edema management
Contracture reduction

What to buy with Air Splint

How to use Air Splint For Arm?

A thin cotton sleeve should cover the patients limb while the air splint is in use.
The splint must be orally inflated. Pressure should not exceed 40mm Hg and should be read when limb is at rest.
The splints may be wiped over with a mild disinfectant to clean them, then dried with a towel. If necessary, the valve may be disconnected and washed and the inflation tube cleaned with a test tube brush dipped in mild disinfectant, allowed to dry and then re-assembled.
Do not let fluid run inside the splint as it can not drain out.

Precautions

The Urias Air Splint should not be worn in direct sunlight.
No splint should be left on for more than one hour.
Do not use the tube as a handle when fitting the splint.
Do not store in sub zero temperatures. Recommended storage temperature is +10°C.
Dispose of in household rubbish bin.
Do not burn on household fire or electric incinerator.

Specification

Model Type	Chambers	Splint Length	Splint Width
Long Arm (80cm)	Single	31" (80cm)	8-1/4" (21cm)
Long Arm (70cm)	Single	27" (70cm)	8-1/4" (21cm)
Half Arm	Single	21" (53cm)	8-1/4" (21cm)
Elbow	Single	14" (40cm)	8-1/4" (21cm)
Foot	Single	15" (38cm)	Top width: 7-3/4" (20cm) Bottom width: 16-1/2" (42cm)
Hand	Double	9-1/2"(24cm)	7-3/4" (20cm)
Hand/Wrist	Double	12-1/4" (31cm)	9" (23cm)
Small Leg (no foot)	Double	24-1/2" (62cm)	Top width: 11" (28cm) Bottom width: 7-3/4" (20cm)
Large Leg (no foot)	Double	27-1/2" (70cm)	Top width: 11-3/4" (30cm) Bottom width: 9" (23cm)
