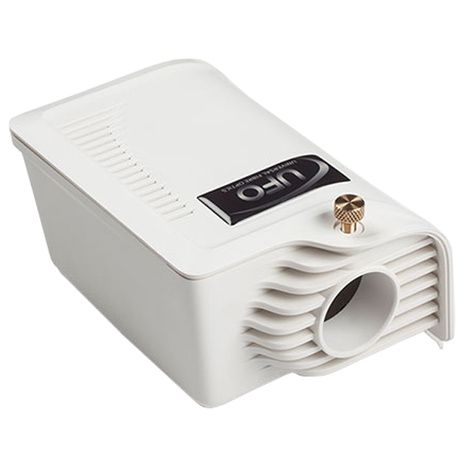

Universal Fiber Optic MicroLED 1000 Illuminator

More Information

• Installation instructions power supply requirements:
  - The LED illuminator is powered from a multi-function, multi-voltage, desk top Power Supply Unit. Remove the SW4047B desk top PSU from its box. This PSU is a multiplug device catering for UK, European and USA plugs
  - Select the correct plug and slide it into the receptacle until it clicks securely into place
  - The plug can be removed by squeezing together the plastic retaining lugs and sliding the plug back out
  - Connect the jack plug into the socket in the back and the illuminator is now ready for connection
• Connection:
  - There are 2 connections required - the fiber port and the mains supply. The fiber port should be connected first. Connect and secure the fiber optic connector into the green collar and secure using the M5 locking screw
  - Plug the mains plug into the electrical supply socket. Switch on the power, the LED indicator will illuminate and the illuminator will start up automatically. If no light is produced consult the troubleshooting section
• Note: These illuminators are not mains dimmable
• Operation:
  - The illuminator is controlled using the 2 push buttons on the rear of the unit
  - The upper button stops and starts the color cycle
  - The lower button is used to select the cycle speed
  - Push the lower button repeatedly until the color white is displayed. The illuminator is now in Cycle 1 Speed A as detailed in the table below. Each push reduces the speed. On the third push, the color red will be displayed. The illuminator is now in Cycle 2 Speed A
  - At any time the cycle can be stopped on a color and started again using the upper push button
