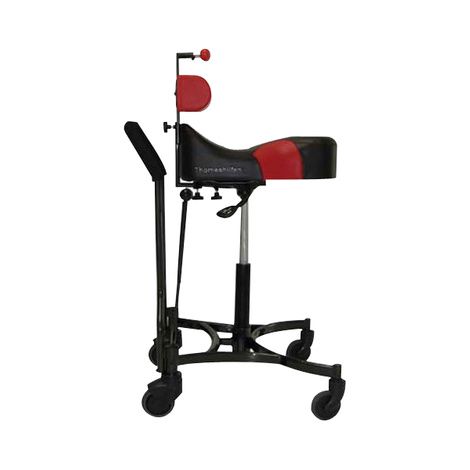

Thomashilfen ThevoSiiS High Therapy Chair

More Information

• Purpose and use
  - Provides a stable and centered sitting position for the user. It gives a minimum of support in order to induce an active holding task
  - The floor contact of the feet, the firm seat surface, and the back rest give clear perception information and a sensible orientation. The user finds their body center and leads their arms and hands towards this center
  - Application studies made with children and adult users showed an improved hand-hand and eye-hand-coordination, and to some extent improved mouth closing and swallowing results. These abilities provide a vital edge in different areas, e.g. at home, in institutions or at home
  - The users appear more awake and significantly more involved in their environment and situation. The constant impulses, which lead to an upright sitting posture awaken pride and strengthen their self-esteem
• Basic requirements for the use
  - The user must have a minimum of support capacity in the legs
  - The user must have a minimum of trunk control which is activated by a corresponding stimulant (e.g. compensating movements, forward support of the arms) and can be changed towards normosone
• Safety checks and maintenance intervals
  - We recommend adjusting the ThevoSiiS growths settings at least every 3 months to best fit the user
  - If necessary, let your therapist help. Check all control elements and fastening screws monthly
• Safety instructions
  - Please check for proper operation immediately after receipt of ThevoSiiS therapy chair
  - Make sure with the help of a doctor or therapist that the product is suitable for the user
  - Please make sure to re-tighten the screws after each adjustment
  Caution: Wet wheels may affect the braking action. Apply the brake when stopping or during transfer to prevent inadvertent rolling
  - Do not exceed the maximum size and weight capacity of ThevoSiiS therapy chair
  - On uneven ground and on overcoming thresholds there is a risk for ThevoSiiS therapy chair to tip over
  - Never leave the user unattended to minimize the risk of injuries
  - Please keep packaging material away from children to avoid the risk of choking
  - Only one child or adult user at a time is allowed to use ThevoSiiS therapy chair
  - When lifting the chair, make sure to hold it at tightly welded or tightly screwed competent parts only
  - High solar radiation may lead to high surface temperatures on the dark upholstery material
  - Be careful not to harm yourself when adjusting the height and depth of the iliac crest support or the impulse generators
• Positioning recommendation
  - The feet must always have firm contact with the floor and, in addition, be in a symmetrical position
  - Height adjustment – in order to accomplish the correct positioning of the knee and hip joints. The height of the seat has to be adjusted so the user has floor contact with their feet. In practice, a knee angle and hip angle above 90° has proven itself and achieved good body straightening results
  - Adjusting the body straightening and orientation impulse using the small, firm iliac crest support. It is positioned at the lower iliac crest – often in direct contact with this region. This iliac crest element can be adjusted individually in height and depth, as described in the brochure
  - Positioning the punctiform impulse generators: Each user reacts to individual stimulation points located between the lower part of the thoracic spine and below the shoulder blades. The impulse generators must be adjusted at height level of these points to initiate straightening of the trunk upon contact with the impulse generators.
• Assembly
  - Your ThevoSiiS therapy chair is delivered completely assembled except for the push bar
  - The push bar is placed onto the cylinders above the back wheels. Attach the push bar with the screws and washers provided
  - The holes above the back wheels are closed using the cover caps enclosed
• Adjustment options
  - The special needs of the user require an individual adjustment of the ThevoSiiS therapy chair. Therefore, you should adjust the ThevoSiiS therapy chair consulting your doctor or therapist, until the best possible straightening of the user is reached
  Seat height
  - Pull the lever on the right underneath the seat block upwards to individually adjust the height.
  - When the desired height is reached, release the lever. Additionally, the gas spring can be adjusted by another 10 cm / 3.9" using an Allen key
  - This facilitates overcoming e.g. high thresholds. To prevent a twisting of the seat the hexagon socket screw needs to be tightened on all modells at any time
  Tip: To remove the seat, loosen both screws
• Brake
  - To brake the rear wheels, press the lever forwards. To release the brake, pull the lever backwards again
  Hint: The lever can be mounted on either left or right side of the base frame. Simply loosen the screw, using the Allen key, and pull the lever out. Remove the cover cap on the other side, refit the brake lever and tighten with the screw
  Iliac crest support
  - To adjust the height of the iliac crest support, loosen the hand screw and re-tighten after adjustment
  Depth adjustment of the Iliac crest support
  - The depth of the iliac crest support can be adjusted underneath the seat
  - Loosen the hand screws and individually adjust the depth
  - Afterwards re-tighten the hand screws again
  Impulse generators
  - To adjust the impulse generators, loosen the Allen screws and adjust the desired height by either pulling the impulse generators upwards or pushing them downwards
  - Afterwards re-tighten the screws
• Depth adjustment of the impulse generator
  - Loosen the Allen head screw with an Allen key
  - Position the impulse generators at correct height and re-tighten the screws
• Cleaning and care instructions
  - The base frame of ThevoSiiS therapy chair is manufactured from high-quality steel and aluminum tubing, which can be cleaned using commercially available nontoxic soap (neutral soap)
  - The seat upholstery can be wiped with a soft, if necessary, damp clothThe seat upholstery can be wiped with a soft, if necessary, damp cloth
