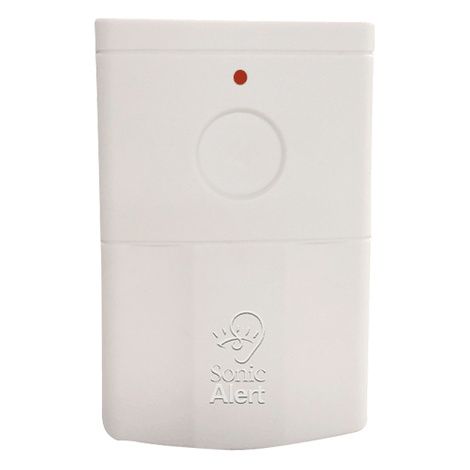

Sonic Alert HomeAware Smoke Or CO Transmitter

More Information

• Battery Backup Installation:
  - Install a new 9 volt alkaline battery into the battery compartment located on the back of the unit.
  - Battery backup will provide power when a power outage has occurred.
  - Power will be provided for a continuous outage lasting 7 days, or for short outages up to two years.
• Link Button Set Up:
  - This procedure will link your transmitter to your Main unit.
  - The Main unit will also provide an alert to all HomeAware remote receivers.
  - When using the Bridge unit HA360BU all original Sonic Alert receivers (SA101, SA201, BL300, and SB1000) will also alert you.(Not included)
  - It is best to do the link procedure in the same room with the HomeAware Main unit, make sure the unit is plugged in.
• To link a transmitter to your HomeAware Main unit:
  - Press set up button and the word LINK will be shown on the display, press Enter.
  - LINK will begin blinking. (If LINK mode is entered by accident, simply press the BACK button to exit and return to the clock.)
  - Press and hold down the Link button on the back of your transmitter for about 1 second. The red LED on the transmitter will light up. Release the button.
  -Upon successful connection, the red LED on the transmitter will flash 2 times, then turn off. The HomeAwareâ„¢ main unit will briefly show DONE, and return to the time display. Your transmitter is now connected and ready to test and use.
• Power Input:
  - The HomeAware Smoke/CO transmitter uses an included 12V DC power adapter.
  - Plug the power adapter into an 120V AC power outlet, then plug the other end into the Low Voltage 12V DC input on the left side of the unit.
• This device complies with part 15 of the FCC rules.
• Operation is subject to the following two conditions:
  - This device might not cause harmful interference
  - This device must accept any interference received, including interference that may cause undesired operation.
  Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide responsible protect against harmful interference in a residential installation.
  - This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause harmful interference to radio communications.
  - However, there is no guarantee that interference will not interfere in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:
  - Reorient or relocate the receiving antenna.
  - Increase the separation between the equipment and receiver.
  - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  - Consult the dealer or and experienced radio /TV technician for help Modification not expressly approved by the manufacturer could void the users authority to operate the equipment under FCC rules.
• Warning:
  - The Lightening flash and arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.
  - To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
  - The normal function of the product may be disturbed by Strong Electro Magnetic Interference.
  - If so, simply reset the product to resume normal operation by following the instruction manual.
  - In case the function could not resume, please use the product in other location.
  - Attention should be drawn to the environmental aspects of battery disposal.
• Caution: To reduce the risk of electrical shock do not remove the cover or back from the product
