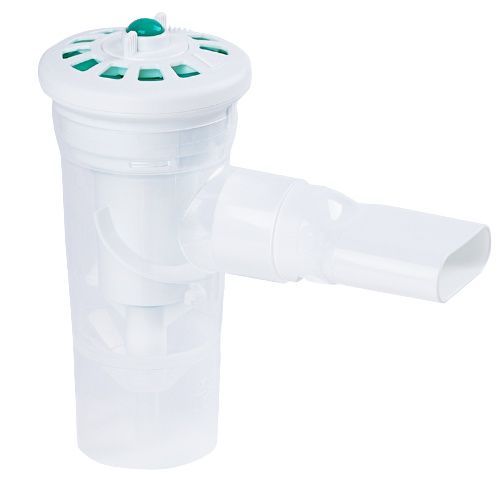

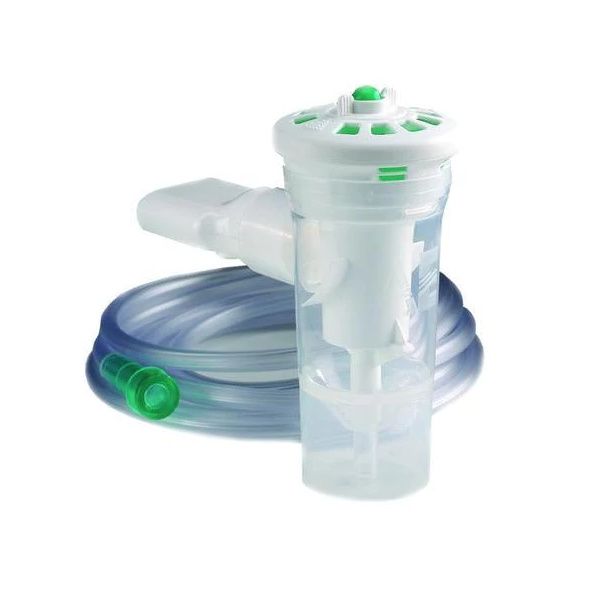

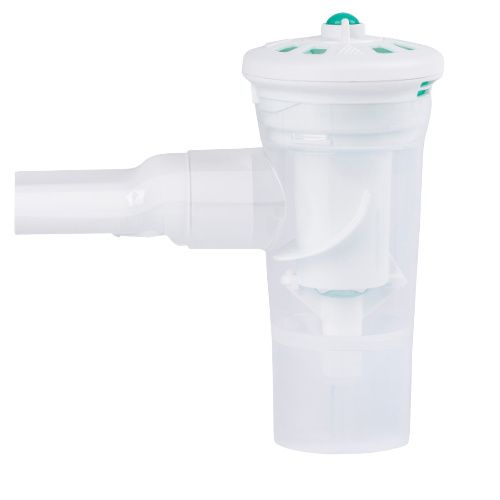

AeroEclipse II Breath Nebulizer Features
- Molded-in fill lines 0.5 ml to 6 ml
- The mouthpiece can be removed and replaced
- Ergonomic size and shape fit comfortably in the hand
- One-quarter turn assembly firmly attaches top to cup
- Clarified polypropylene allows easy visualization of molded-in fill lines
- The mixing of inhale and exhale is essentially eliminated with a one-way exhalation valve
- Green "feedback" button signals actuation and offers a visual assist to proper use and breathing technique
- Increases the breath actuation sensitivity so that the device may be activated with only 15 lpm of inspiratory effort
- Air entrainment through the back of the nebulizer conditions the aerosol and improves the delivery of fine particle mass
- Features built-in mode selector makes it simple and convenient to choose between continuous and breath-activated functioning modes
How to Use Monaghan Aeroeclipse II Nebulizer?
- Insert the mouthpiece into the side opening of the nebulizer with the exhalation valve facing down. Inspect the tubing for the fray, wear or lose particulate, and ensure nothing is blocking the air supply pathway of the nebulizer
- Prior to using, inhale and exhale through the nebulizer mouthpiece to verify the movement of the green feedback button located on top of the device
- Unscrew and remove the top of the nebulizer. Place the prescribed medication into a nebulizer cup (maximum cup volume 6 ml). Reattach the top and gently hand tighten

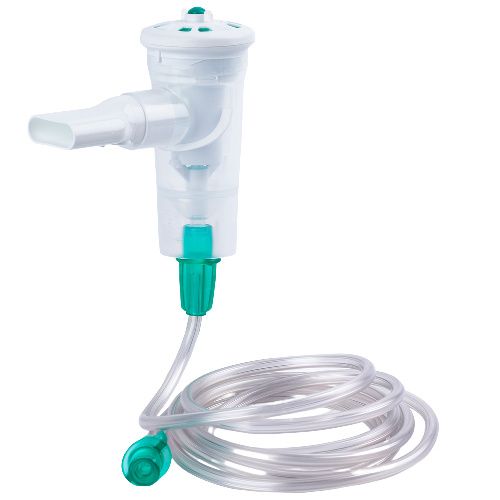

- If using a flowmeter: Set the flowmeter to 7–8 liters per minute (lpm). Attach one end of the supplied tubing to the fitting in the bottom of the nebulizer and the other end to the flowmeter. Ensure both ends are securely engaged
- If using a compressor: Ensure the compressor is capable of delivering a minimum of 15 to 50 P.S.I. and a flow of 2.75 to 8 lpm. Attach one end of the supplied tubing to the fitting in the bottom of the nebulizer and the other end to the compressor. Ensure both ends are securely engaged. Turn on compressor
- Place the mouthpiece in the mouth, and inhale slowly and deeply. As you inhale, the green button on top of the nebulizer will move into the fully down position, indicating that the AeroEclipse® II BAN is producing aerosol in response to inhalation. Exhale normally. A valve on the mouthpiece opens allowing passive exhalation, as the green button returns to the up position indicating no aerosol is being produced. Do not place the lips over the exhalation valve on the bottom of the mouthpiece. Doing so will prevent the valve from functioning properly
- Continue to inhale from the nebulizer until the nebulizer begins to sputter, or as instructed by your physician or qualified healthcare worker
Note:
If you are unable to trigger the device (hold the green button down during inhalation), it can be manually operated by depressing/releasing the feedback button in coordination with inspiration/expiration
Cleaning Instructions:
- Sterile Water: Thoroughly rinse the disassembled parts in sterile water and shake them to remove excess water
- Isopropyl Alcohol: Wipe the outside surfaces with a tissue dipped in 70% Isopropyl Alcohol then submerge all parts in a soak of 70% isopropyl alcohol for 1 minute before shaking to remove any excess alcohol
- Air Dry: Disassemble the device and shake out any excess drugs
- Hand Washing: Wash nebulizer parts in a warm water/liquid dish detergent solution and rinse in clean warm water
Indications of Monaghan AeroEclipse II Breath Nebulizer:
- Intended environments for use include the home, hospitals, and clinics
- Intended to be used by patients who are under the care or treatment of a licensed healthcare provider or physician
- The device is intended to be used by these patients to administer aerosolized medication prescribed by a physician or healthcare professional
Contraindications of Monaghan AeroEclipse II Breath Nebulizer:
This device has not been tested for use with Pentamidine
