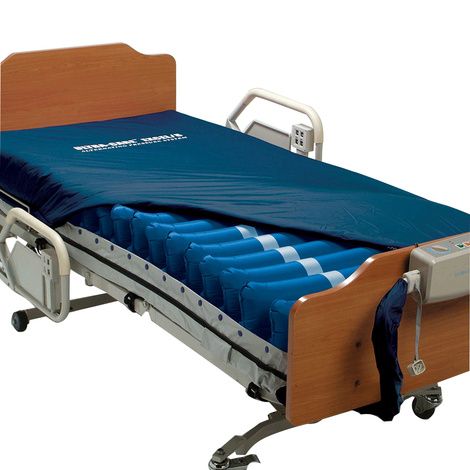

Meridian Ultra-Care Mattress System Features
- Includes
- - Mattress
- Cover
- Pump
- Mattress and pump come with a 2-year warranty
- Quick disconnect cells for easy cell replacement
- Air cells made with nylon/polyurethane for increased durability and reliability
- CPR quick deflate located at the head of the mattress
- Quilted cover, moisture resistant, vapor permeable nylon; low shear/low friction
- 10 minute cycle time
- Front panel switch provides two modes of therapy - static or alternating
- Variable pressure setting allows for maximum comfort
- Adjustable pressure range: 20 mmHg - 70 mmHg
- Supports patients up to 350 lbs.
Cell Construction
- Twenty rows of 8" alternating pressure air cells, 9 with laser holes to keep the patient cool and speed recovery
- Air cells made of nylon/polyurethane for increased durability and reliability
- Cells are easily cleaned
Cover
- Zipper cover is quilted vapor permeable nylon
- Water-resistant
- Easy cleaning
- Low shear/low friction
Quick Disconnect Cells
- Quick disconnects allow for easy cell replacement
- Quick disconnect cells allow any area of the mattress to deflated and be zero pressure without affecting alternating benefits
Pump
- Front panel switch provides two modes of therapy - static or alternating
- LED backlit switches with the dial on the panel for simple set up and operation
- Retractable hooks for bed use
More About Meridian Ultra-Care Mattress System
16 LPM PUMP UPGRADE (ITEM #4253E)
- High-flow 16 liter-per-minute pump
- Dual compressor for increased patient comfort and weight capacity (100 lbs.)
- 10, 15 or 20 minute cycle times
- Five comfort settings Automatic reset from static to alternating after 45 minutes
SAFE-T-GUARD COVER (ITEM #SG8_FG)
- Perimeter cover reduces the risk of falls and entrapment
- Foam borders are 4" high and sloped inward
- Zippered cover for a secure fit
- Water resistant quilted top
QUICK INFLATE PUMP (ITEM #90501)
- Reduces inflation time dramatically
- 20 liter-per-minute flow pump
- Rapid deflate for quick transport
- Small and easy to use
Specification
Particulars |
Specifications |
Mattress |
|
Dimensions |
80"L x 36"W x 8"H |
Cells |
20 rows of cells 8" high, 9 with laser
holes for air loss benefit |
Inflation Time |
20 - 25 minutes with static inflate.
2 - 5 minutes with rapid inflate pump |
Material |
Nylon/Polyurethane for durability.
Integrated foam base for additional
protection. |
Weight Capacity |
350 lbs.
450 lbs. with 4253E upgrade pump |
Mattress Weight |
9 lbs. |
Cover |
Urethane coated nylon that is vapor
permeable and low shear/low friction |
Base |
Reinforced nylon for durability. Bayonet
type tie connectors to secure the
mattress to the bed frame. |
Transport Cap |
Located at end of the connector hose
which when inserted, locks and prevents
air loss from the mattress if the pump
loses power or is disconnected. |
Additional |
System uses modular components which
allows for simple part replacement.
CPR quick deflate at head of mattress |
Pump |
|
Electrical Power |
110-120 VAC, 60Hz, 100mA, 8.5W |
Power Cord |
SJT 14 Feet, 3 Prong |
Air Output |
8 LPM |
Indicator Lights |
Power On, Normal Pressure, Low
Pressure, Mode Selection |
Cycle Time |
10 minutes |
Dimensions: |
11.8"L x 3.7"W x 7.5"H |
Safety Code Approval |
UL 544 & CSA |
Pressure Range: |
20 - 70 mmHg ± 10% |
Warranty
Two year warranty on mattress and pump
