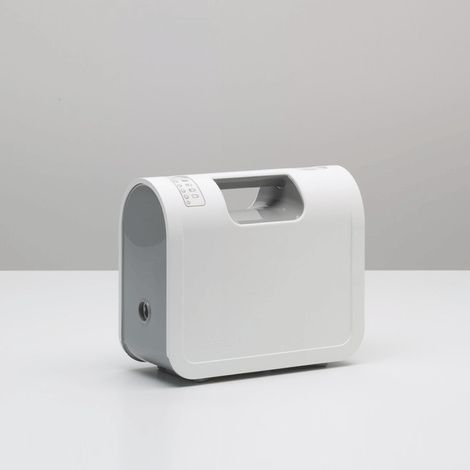

Mangar AirFlo 24 Air Compressor

More On AirFlo 24

Battery Charging:

• Ensure that the Airflo 24 is switched off by pressing the Power button before connecting the battery charger.
• Check the battery charger casing and lead for signs of damage and if damaged DO NOT USE.
• Fit the appropriate mains plug adaptor to the battery charger.
• Plug the battery charger into a mains power socket and connect the charger output lead to the Airflo 24 charging socket.
• Note: The batteries must be recharged for a minimum of 16 hours to achieve full capacity.

  When the battery is being charged:

• For the first 2 hours, the bottom light will show a steady red and the next light will be flashing green. After 2 hours the lights will change to two steady green and one flashing green. After 16 hours all lights will become steady green.
• If charging is momentarily interrupted (a power cut, switching the power socket off or disconnecting the charging lead), on reconnection, the charging process will start at the beginning and follow the sequence above for the next 16 hours.
• The charger is not capable of providing sufficient power to charge the batteries while the compressor is running.
• To maintain battery condition, it is recommended that the Airflo 12 is left continuously on charge when not in use. The batteries cannot be overcharged using this charger.
• DO NOT recharge the batteries in a bathroom or in a damp environment.
• To disconnect the charger from the mains power supply, unplug the charger from the mains power socket.


Cleaning:

• Unless contamination is suspected, periodic cleaning is all that is recommended. The Airflo 12 should be cleaned/disinfected as follows:
  • Unplug the Airflo 24 from the battery charger.
  • Clean the external surfaces using a non abrasive damp cloth with warm water.
  • Wipe dry thoroughly with a dry towel before reconnecting to the battery charger.
  • Do not allow moisture to enter any part of the compressor.
  • Do not use solvent-based products.

Maintenance:

• The Airflo 24 has been designed to be maintenance free and apart from replacing the battery, the Airflo 24 contains no other user serviceable parts
• Battery Replacement:
  • Turn the Airflo 24 onto its end containing the air outlet socket, remove the screw and slide the end panel away from the housing.
  • Disconnect the wire from the battery pack and remove the battery pack from the battery compartment.
  • Fit the replacement battery pack, ensuring that the connector is secure, refit the end panel and secure the screw.
  • Do not allow moisture to enter any part of the compressor.
  • Do not use solvent-based products.
• When it becomes apparent that the Airflo 24 is producing fewer than expected lifting cycles, the battery is probably reaching the end of its working life and should be replaced.
