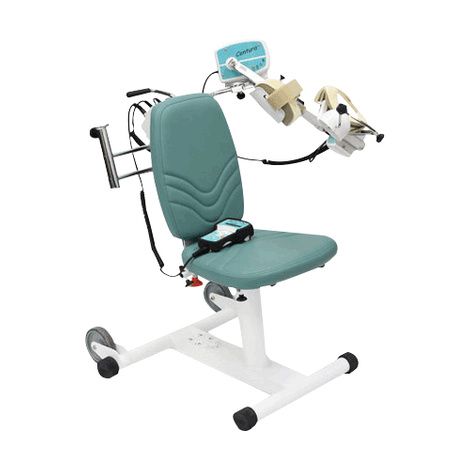

Kinetec Centura Anatomical Shoulder CPM Machine

Kinetec Centura Anatomical Shoulder CPM Machine

Brand/Manufacturer: KINETEC USA
Save
Authorized Retailer Badge

Kinetec Centura Anatomical Shoulder CPM (Continuous Passive Motion) Machine features a natural, anatomical motion that increases patient compliance and decreases joint stress. It is the ideal choice for hospital and home shoulder rehabilitation. The Centura Anatomical Shoulder CPM also features horizontal abduction and adduction, a unique passive mode to address the critical functional motion of the shoulder.

Indication for Using Centura Anatomical Shoulder CPM

  • Fractures and dislocation requiring reconstructive surgery of:
    • Glenohumeral joint
    • The clavicle scapula
    • AC joint
  • Rotator cuff repair, capsulotomy and acromioplasty
  • Frozen shoulder and burns
  • Total shoulder replacements

Item # Desc Pkg Price
81528124 CPM Machine Each
$7641.55
$5878.09

Why Choose Kinetec Shoulder CPM Machine?

  • Programmable hand control allows pre-programming 16 different protocols
  • Scapula plane movement increases patient comfort in abduction
  • Centura can be programmed to reverse itself when excess force is exerted on the joint
  • Adjustable speeds and manual set-up mode provide precise, custom therapy options
  • Kinetec Centura Anatomical Shoulder CPM Machine folds for easy set-up and transportation
  • Controlled synchronized motion ensures patient safety
  • The post-operative passive range of motion helps prevent joint stiffness, edema, soft tissue contractures and muscle atrophy
  • Change for right and left is easy
  • Comes for Extension/Flexion set-up
  • Also features horizontal abduction and adduction, a unique passive mode to address the critical functional motion of the shoulder (Horizontal Abduction Module, not included)
  • Note: Rotation motor is not included

Kinetec Anatomical Shoulder CPM Benefits

  • Color-coded components enable quick assembling or disassembling and right or left change
  • Quick adjustment features enable easy and quick patient set-up
  • Transport handle and wheels reduce potential injury for caregiver
  • Patient lock-out switch prevents accidental program change and potential patient injury
  • Built-in hour meter discreetly monitors patients compliance
  • Programmable pause increases efficiency of therapy by prolonging stretch to muscle group

Kinetec Shoulder CPM Specifications

ParticularsDimensions
Dimensions (set-up position)27"L x 27"W x 35"H (70cm x 70cm x 90cm)
Patient Height Range4ft 2" to 6ft 6" (1.3m to 2m)
Speed5 speeds from 30° to 120°/minute
Weight50lb (23kg)
Passive Range of MotionFlexion: 180°
Extension: 20°
Abduction: 160°
Adduction: 20°
External Rotation: 90°
Internal Rotation: 60°
Horizontal Abduction30° to 110°
Synchronized Abduction and RotationAbduction: 160°
Adduction: 20°
External Rotation: 90°
Internal Rotation: 30°
