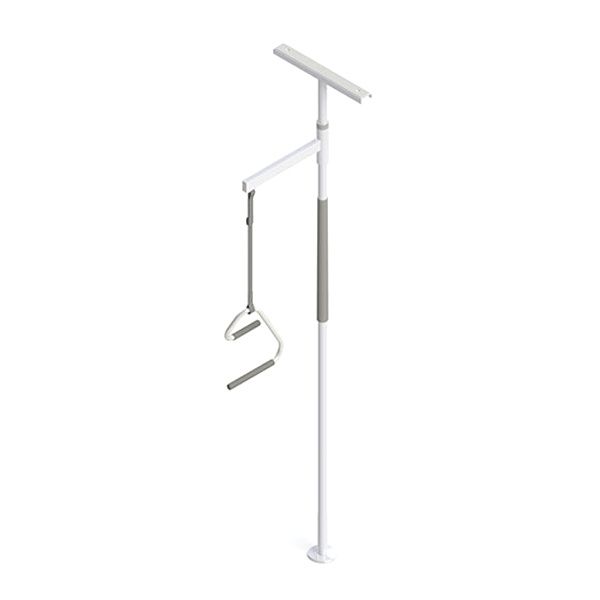

HealthCraft SuperPole With SuperTrapeze Features
- Effective: Includes the innovative e2 trapeze handle with a ladder-like set of two rails that allows the user to more easily climb up to a sitting position
- Ease of Use: Combination of a trapeze + bedside pole the only product to provide complete support for sitting up, pivoting, and standing up from bed
- Versatile:
- Does not require special bed or mounting brackets works with any bed, does not force bed outward from wall as with conventional trapeze systems
- - Will install beside waterbeds and electric beds unlike floor mounted trapeze systems
- Flexible:
- Support arm is adjustable in height and angle
- Strap is adjustable in length to achieve best height and location of trapeze
- Ease of Use: Open design of trapeze handle allows it to be hooked onto pole for storage
- Installation options sold separately for higher ceilings and angled ceilings
- HealthCraft SuperPole System has clean and modern design which suit any decor
- Superpole has foam hand grip which provides a comfortable gripping surface, particularly useful for those with limited hand strength
- Rubber pads on the ceiling plate and the floor plate hold pole secure and prevent marring of floor and ceiling, even stipple ceilings
- Central to the system is a stylish floor-to-ceiling grab bar, which provides a secure structure
- Durable, anti-microbial white powder coat finish (over carbon steel)
- Quick and easy to installation
- PVC closed foam grip material
- Latex-free
- Non-slip
More On SuperPole With SuperTrapeze
Installation of SuperPole:
Attach the top plate to the pole assembly with supplied clevis pin.Place the base plate on the floor at the intended location.Insert the pole assembly into the base plate.Make pole vertically level and insert a screwdriver thru drive hole in the jackscrew.While holding pole, turn jackscrew (with screwdriver) clockwise until pole is tightened between floor and ceiling.Ensure ceiling plate spans one or two ceiling joists.Turn jam nut to lock the jackscrew. This prevents pole from loosening.Lower plastic sleeve to cover jackscrew.
Installation of SuperTrapeze:
Slide the support arm onto the top of the SuperPole, and install SuperPole as per instructions.Set height and angle of support arm and secure set screws with hex key.Adjust length of strap so fingers can comfortably rest on bottom rail when lying down.Slide trapeze in open loop on strap.
Note:
The SuperPole System should only be installed between floors and ceilings of solid construction or injury may result. The SuperPole System should not be installed on loose floor coverings, in rooms with radiant ceiling heating, in mobile homes, or in suspended or angled ceilings. Recommended weight limits are 300lbs for all models (excluding SuperPole Heavy Duty); no more than 150lbs should be exerted on trapeze system (for repositioning and sitting up assistance only).
Specification
|
Particulars
|
Dimensions
|
|
SuperTrapeze
|
|
Size
|
0.875" diameter, Adjustable 1” nylon strap attaches to welded support arm (adjustable in height on SuperPole)
|
|
Strap Range
|
3" to 29"
|
|
Support Arm
|
17". Recommended height 84" from floor
Fixed to the pole with 3 penetrating set screws
|
|
Trapeze Handle Grips
|
6.25” and 10.25”
|
|
Height Adjustable
|
6" to 18"
|
|
Material
|
Alloy Steel
|
|
Grip Material
|
Non-slip, PVC closed cell foam (latex free)
Washable
|
|
Installation Mechanism
|
SuperTrapeze secures to pole with 3 set screws
|
|
SuperPole
|
|
Floor to Ceiling Range
|
93" to 99"
|
|
Pole Material
|
Alloy Steel, 1.5" diameter
|
|
Grip Material
|
Non-slip, PVC closed cell foam (latex free)
|
|
Installation Mechanism
|
Pressure fit between floor and ceiling
|
|
Base Plate
|
5" diameter
Non-marking base plate rubber, ribbed for better gripping
|
| Top Plate Length |
20" |
|
Weight capacity
|
300lb
|
