HealthCraft Angled P. T. Rail

HealthCraft Angled P. T. Rail

Brand/Manufacturer: HEALTHCRAFT PRODUCTS INC.
Save
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable
  • FSA Approved

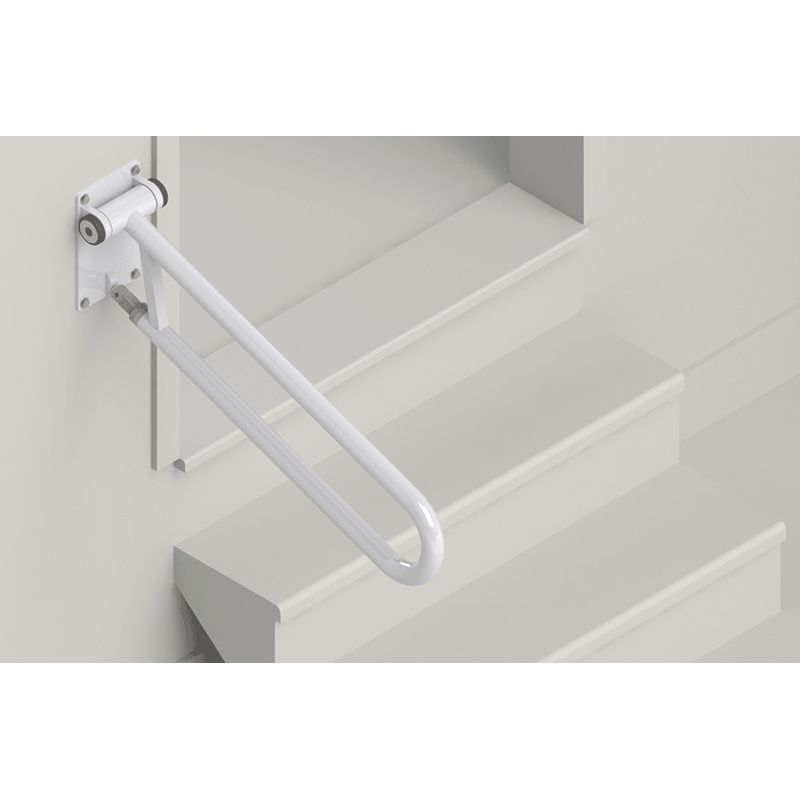

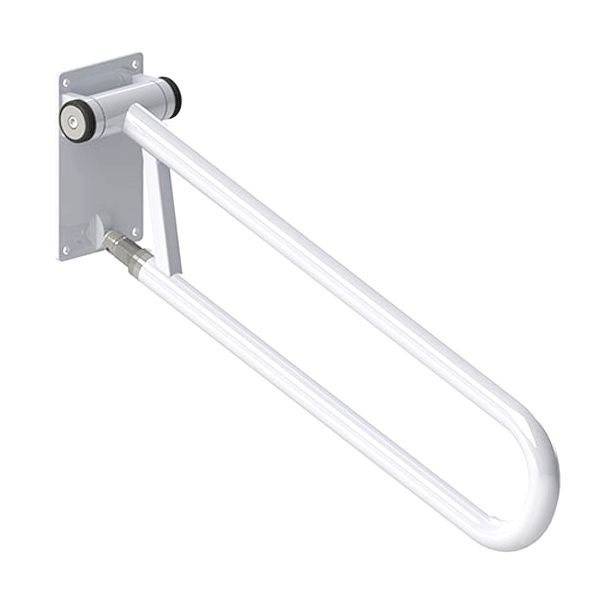

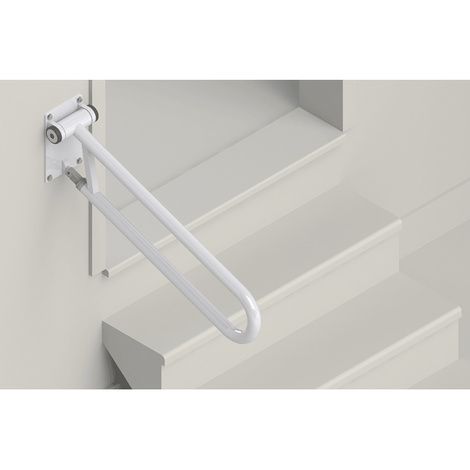

HealthCraft Angled P. T. Rail is a solid rail which is designed for additional support when going up and down two or three stairs. The PT Rail Angled mounts to the wall and can be lifted out of the way when not in use. It is adjustable, foldable and can be mounted on the wall as well as the floor. P. T. Rail can be adjusted between 0 and 35 degrees to suit the angle of the stairs it is mounted beside.

HealthCraft Angled P. T. Rail Highlights:

  • Safe Fold Away Storage
  • Adjustable Rail Angles
  • Suit home or institutional use
  • Support for 2 and 3 step stairs
  • Wall or floor mounted options
  • Water and rust resistant



Item # Desc Pkg Price
PT-ANG32-PCW 32", White Each
$597.71
$442.79

HealthCraft Angled P. T. Rail Features

  • Adjustment screw to customize rail angle to suit even the steepest stairs
  • An excellent support option for sunken living rooms, decks, patios or 2 and 3 step stairs in garages
  • Friction hinge to hold the rail in any position, preventing it from falling to its down position
  • Can be mounted with a mast at the threshold of a corner, garden or whirlpool tubs for optimal support
  • Can be mounted to virtually any wall with basic structural reinforcements
  • Can be adjusted between 0 and 35 degrees to suit the angle of the stairs
  • Available in the durable powder coat white finish (over carbon steel)
  • Great for getting in and out of jacuzzis

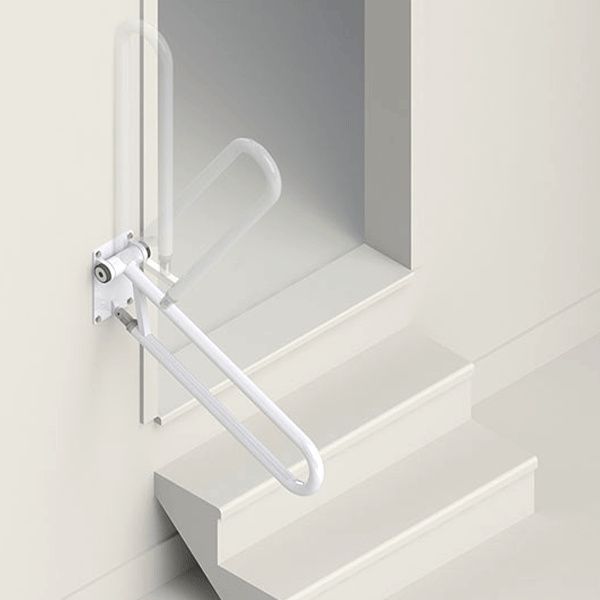

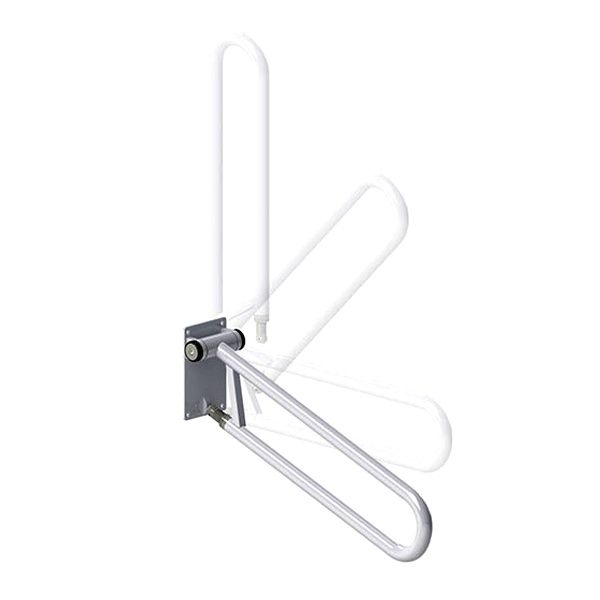

  • Easily folds up to store out of the way and will not accidentally fall down causing an impact injury
  • Machined precision, tension fit hinge creates stable, rock solid support
  • Anti-microbial powder coat, white finish
  • Material: Alloy steel
  • Support up to 400 lbs
  • Fasteners must be suitable for substrate
  • Include lag bolts (1/4" x 3" length) for wood constructions
  • Instruction Manual

Installation Instructions Of P. T. Rail

  • Fasten rail to structural wall with appropriate fasteners for wall construction.
  • Ensure unobstructed rail travel in all positions.
  • Place rod thru hole in screw.
  • Using rod, turn screw until rail is adjusted to desired angle.
  • Turn jam nut to lock the jackscrew.
  • This prevents rail angle from loosening.

Specification

Particulars Dimensions
Rail Length 32" ( 81cm) options from wall to tip of rail
Rail Diameter 1.5" ( 3.81cm) diameter
Rail Angle Range 0° to 35°

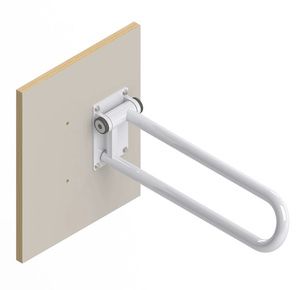

Wall Plate 5.5" x 10.25" (14cm x 26cm) with 0.375" (4cm) diameter fastener holes
Material / Finishes Steel (white powder coat or chrome plated) or stainless steel
Weight Capacity 400lb  (181kg)

Warranty

Limited lifetime warranty
