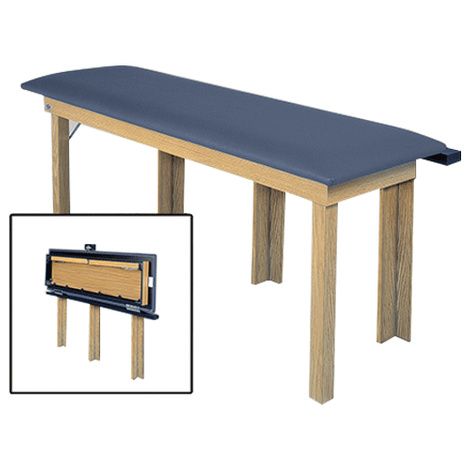

Hausmann Wall Folding Treatment Changing Table

How to Use Wall Folding Treatment Changing Table?

Installation:

• Mount wall support assembly to wall allowing it to sit on the floor, using fasteners (not supplied by Hausmann Industries, Inc.)
• NOTE: Make sure the wall fasteners are fastened into as many wall studs as possible.
• Position the bottom of the slide bolt lock 24-1/2" above the back support rail and mount using fasteners (not supplied by Hausmann Industries, Inc.)
• NOTE: Make sure that the slide bolt block is fastened into a stud.
• Lay top upside down on smooth surface, fold open the legs on the platform and raise the table to set the platform hinges (two) on the back support rail. Attach platform hinges to back support rail with the 8 screws provided using the pre-drilled holes as guides.
• Slowly lift the table to a vertical position. While supporting table, slide down bolt to lock table in vertical position.
• Push in locking button on folding leg bracket, while pushing in hinge towards inside corner of table until disengaged. Now swing the leg towards interior of table, until fully closed. Repeat on second leg.


Operation:

• To fold the table:
  • Slowly fold the top against the wall and lock slide bolt to secure top to wall.
  • Press locking button to disengage leg bracket.
  • Slowly swing leg towards inside of table.
  • Repeat with second leg.
• To unfold table:
  • Pullout legs.
  • Be sure that the legs lock into place when fully extended by pulling center of leg bracket toward you.
  • While supporting table top, open slide bolt so it is in a position that will allow the table to fold down. Carefully lower the table with two hands from the wall to the floor.
  • CAUTION: Maintain control over the table during complete unfolding operation. Do not allow the table to drop down unattended.
