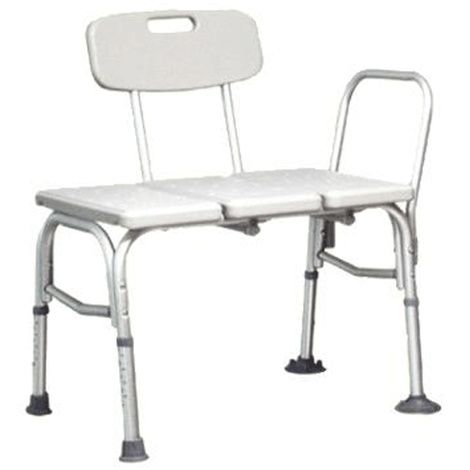

Graham-Field Lumex Maxi-Drain Transfer Bench

How To Use Graham-Field Maxi-Drain Transfer Bench?

Attaching the Leg Extensions (if not attached already)

• Place frame on its side on a level surface.
• Attach leg extensions with suction feet to the frame on the same side as where the support arm will be.
• Attach leg extensions with flange tips to frame on opposite side of frame.
• The transfer bench legs with suction feet should be the two legs that are to be placed inside the tub.

Attaching the Backrest

• Determine the side on which the backrest should be mounted by knowing which direction the user will face when sitting on the bench in the tub.
• Position the bench upright on a level surface.
• Locate the channel guides (4 each) on the underside of the seat. Align backrest support tubes with channel guides.
• Slide backrest seat support tubes through channel guides until seat support tube push buttons protrude fully through channel guide holes.
  NOTE: Ensure seat support tubes buttons protrude fully through channel guide holes.
  CAUTION: Backrest is not designed to support the full weight of the user.

  CAUTION: Ensure backrest is facing down correctly before inserting to avoid improper installation.

Attaching the Support Arm

• To attach the support arm, position the seat arm against the leg frame and slide the armrest tubing into the tube openings until it clicks into place.
• Make sure that the push buttons fully protrude through the holes in the bracket. NOTE: An audible click will be heard.
• To remove the support arm, depress the push buttons and pull up.
  NOTE: The end with the Support Arm and Suction Feet is the side that should be inside the tub.

Adjusting Leg Height:

• Depress the height adjustment button and slide the lower leg upward or downward until the height adjustment button clicks into place in the desired hole.
• Repeat for other 3 legs.
  CAUTION: Ensure that all four legs are adjusted to the same height, and that all height adjustment buttons protrude fully through adjustment holes before use.

Using Your Transfer Bench
NOTE: Be sure to move slowly throughout use to prevent injuries.
NOTE: Children or those who need assistance should NOT be left unattended during use of this product. From a seated position (such as a wheelchair):

• Place your wheelchair next to the bench, facing the front of the bathtub.
• Engage wheelchair locks.
• Transfer your torso to the transfer bench first, and then lift your legs into the tub. Move slowly to prevent injuries.
• After bathing, lift your legs out of the tub first, then your torso.
  From a standing position:
• Sit on the side of the transfer bench that is outside of the tub.
• Extend your arms to grab the support arm of the bench and slide your body over onto the bench. Lift each leg over the tub slowly.
• Position yourself to a comfortable position in the center of the bench.
• After bathing, lift your legs out of the tub first, then your torso slowly


Maintenance:

• Use a mild soap and water solution, rinse with clear water, then dry with a soft cloth. Ensure that product is well rinsed before using.
• Never use organic solvents, abrasive cleaners, or scouring pads on any part of the product.
• Check fit and tightness of all nuts, bolts and knobs weekly to ensure that product is safe to use.

Warning:

• DO NOT use this product without first completely reading and understanding these instructions and any additional instructional material such as owners manuals, service manuals or instruction sheets supplied with this product.
• If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or damage may occur.
• Users with limited physical capabilities should be supervised or assisted when using the transfer bench
• 7927A has a maximum weight capacity of 350 lb. EVENLY DISTRIBUTED
• Leg extensions with rubber tips MUST be in contact with the floor at all times.
• Ensure that the push buttons fully protrude through the same height adjustment hole of each leg extension.
• This ensures that the leg extensions are securely locked in position and that an even height adjustment is achieved.
• Make certain ALL screws and nuts are tight at all times.
• WARNING: Inspect rubber tips on the leg extensions for rips, tears, cracks or wear or if they are missing.
• Replace them IMMEDIATELY if any of these conditions exist.
• The transfer bench seat MUST be installed before sitting on the transfer bench.
• Notice for California Customers California Proposition 65.
• This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm.

. WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

Lumex Maxi-Drain Transfer Bench Specification

Warranty

Lifetime limited warranty
