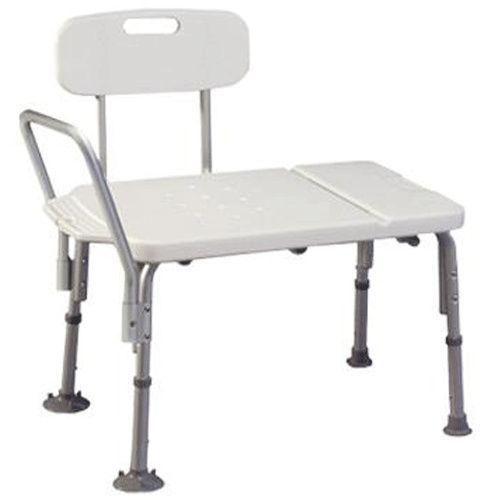

Graham-Field Lumex Imperial Collection Transfer Bench

More Information

• Attaching the Leg Extensions:
  - Place frame on its side on a level surface
  - Attach leg extensions with suction feet to the frame on the same side as where the support arm will be. Attach leg extensions with flange tips to frame on opposite side of frame
  - The transfer bench legs with suction feet should be the two legs that are to be placed inside the tub.
• Attaching the Backrest:
  - Determine the side on which the backrest should be mounted by knowing which direction the user will face when sitting on the bench in the tub
  - Position the bench upright on a level surface
  - Locate the channel guides (4 each) on underside of seat. Align backrest support tubes with channel guides
  - Slide backrest seat support tubes through channel guides until seat support tube push buttons protrude fully through channel guide holes
  - NOTE: Ensure seat support tubes buttons protrude fully through channel guide holes
  - CAUTION: Backrest is not designed to support the full weight of the user
  - CAUTION: Ensure backrest is facing down correctly before inserting to avoid improper installation.
• Attaching the Support Arm:
  - To attach the support arm, position the seat arm against the leg frame and slide the armrest tubing into the tube openings until it clicks into place. Make sure that the push buttons fully protrude through the holes in the bracket. NOTE: An audible click will be heard
  - To remove the support arm, depress the push buttons and pull up.
  - NOTE: The end with the Support Arm and Suction Feet is the side that should be inside the tub
• Adjusting Leg Height:
  - Depress the height adjustment button and slide the lower leg upward or downward until the height adjustment button clicks into place in the desired hole
  - Repeat for other 3 legs
  - CAUTION: Ensure that all four legs are adjusted to the same height, and that all height adjustment buttons protrude fully through adjustment holes before use.
• Using Your Transfer Bench:
  - NOTE: Be sure to move slowly throughout use to prevent injuries.
  - NOTE: Children or those who need assistance should NOT be left unattended during use of this product
  From a seated position (such as a wheelchair):
  - Place your wheelchair next to the bench, facing the front of the bathtub.
  - Engage wheelchair locks
  - Transfer your torso to the transfer bench first, and then lift your legs into the tub. Move slowly to prevent injuries.
  - After bathing, lift your legs out of the tub first, then your torso.
  From a standing position:
  - Sit on the side of the transfer bench that is outside of the tub.
  - Extend your arms to grab the support arm of the bench and slide your body over onto the bench. Lift each leg over the tub slowly.
  - Position yourself to a comfortable position in center of bench.
  - After bathing, lift your legs out of the tub first, then your torso slowly.
• Maintenance:
  - Use a mild soap and water solution, rinse with clear water, then dry with a soft cloth. Ensure that product is well rinsed before using.
  - Never use organic solvents, abrasive cleaners, or scouring pads on any part of the product.
  - Check fit and tightness of all nuts, bolts and knobs weekly to ensure that product is safe to use
  - To guarantee the best service from your product, always specifiy Lumex replacement parts
• Warning:
  - DO NOT use this product without first completely reading and understanding these instructions and any additional instructional material such as owners manuals, service manuals or instruction sheets supplied with this product. If you are unable to understand the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before attempting to use this equipment - otherwise, injury or damage may occur.
  - Users with limited physical capabilities should be supervised or assisted when using the transfer bench.
  - Maximum weight capacity of 400lb. EVENLY DISTRIBUTED
  - Leg extensions with rubber tips MUST be in contact with the floor at all times
  - Ensure that the push buttons fully protrude through the same height adjustment hole of each leg extension. This ensures that the leg extensions are securely locked in position and that an even height adjustment is achieved.
  - Make certain ALL screws and nuts are tight at all times.
  - Inspect rubber tips on the leg extensions for rips, tears, cracks or wear or if they are missing. Replace them IMMEDIATELY if any of these conditions exist
  - The transfer bench seat MUST be installed before sitting on the transfer bench
  - Notice for California Customers: California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and reproductive or developmental harm.

Specification

Warranty

Lifetime limited warranty
