Everway4all 2-Section Treatment Table

Everway4all 2-Section Treatment Table

Brand/Manufacturer: EVERYWAY MEDICAL INSTRUMENTS
Authorized Retailer Badge

Call 816-266-4969 for a B2B quote

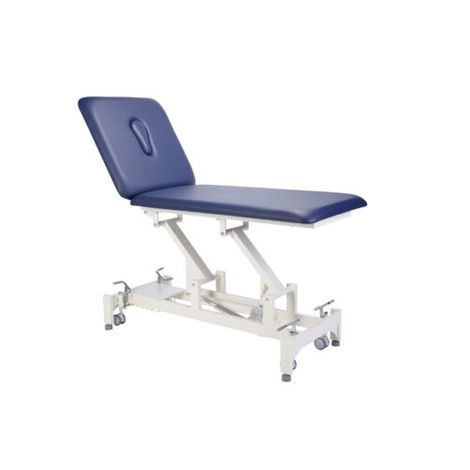

Everway4all 2-Section Treatment Table CA20 provides medical professionals with a secure and comfortable area to diagnose and treat patients of all ages. It is created with the body, and leg sections merged into a single piece. The treatment table features twin "oversized" pillars for added stability and powerful twin gas struts for solid head section support and smooth movement. It has a head tilt angle of -35º to +87º and is controlled by a hand-controlled motorized actuator. Each of the table's four corners has a leveling foot. This table is mounted on 4 retractable castors and has a patient weight capacity of 496 lbs.

Item# CA20

  • ORDERING DETAILS
  • Total: $2551.02
    Total: $2040.81
Total: $2551.02
Total: $2040.81

Features

  • Everyway4all CA20 2-Section Physical Therapeutic Therapy Treatment Table includes
    - Motorized Actuator for Hi/Lo Adjustment
    - Twin Oversized Pillars for Added Stability
    - Individual Leveling Foot on All 4 Corners
    - Retractable Castors at Both Ends
    - Twin Gas Struts for Solid Head Section Support
  • Maximum Load Capacity: 225kgs (496lbs)
  • 100 to 240VAC (Universal Voltage)
  • Plug Type: US Plug
  • User Manual

More Information

  • Safety Instructions:
    • Prior starting to use the table, it is important that you read and understand this manual
    • You may also consult this manual whenever youre in doubt about using the table
    • Use only the original accessories that is manufactured by Everyway Medical Inst. Co., Ltd. for the table
    • DO NOT USE the table in "Wet Rooms" - Hydrotherapy Rooms
    • Keep the table away from direct heat and fire
  • Warnings:
    • Please make certain that Electric Couches /Tables are not used in the presence of flammable gases such as anesthetic agent
    • Do not sit on the edge of the Head or Foot Section of a couch or table as possible damages to the (1) Gas Struts and/or (2) Gas Strut Handle Bar may occur. The standard Load of a couch or table is rated at which the loading weight is distributed evenly across the working surface but not on a specific area or side of table top
    • It is hazardous to exceed the rated maximum load of a couch or table
    • The operation Electric couch or table requires the Power Cord to be securely plugged in to the wall utility power. When the Power Cord is unplugged, it does not operate unless the couch or table is equipped with a backup battery
    • Use only the original accessories that are manufactured by Everyway Medical Inst. Co., Ltd. for a table or couch
    • Children MUST be refrained from using any tables or couches by means of operating a hand or foot control nor Elevating Bars
  • Cautions:
    • Before allowing a patient to lay on the couch or table, please ensure that the Leveling Foot at each corner is LEVELED and RESTING on the floor securely after the castors are retracted. If not, please adjust the leveling foot accordingly to stabilize the table
    • Check any trapped power cords or cables underneath the couch or table while moving the table
    • Keep any person; limbs away from all moving parts of a couch or table, especially when the table is being moved from one place to another
    • When applying electrotherapy to a patient, please keep his or her body away from any contact with metal parts of the couch or table
    • Please familiarize yourself with the operation of all various controls of actuator and gas struts to avoid inadvertent actuation of table sections

Specification

Particulars Specifications
Minimum Height 460mm (18.11”)
Maximum Height 910mm (35.83”)
Table Top Width 700mm (27.56”)
Head Section Length 685mm (26.97”)
Leg Section Length 1210mm (47.64”)
Total Length 1930mm (75.98”)
Head Tilt Angles -35º to +87º
Lift Mechanism Electric
Breathing Hole/Plug 1
Retractable Castors 4
Weight Rating (Maximum Load) 225kgs (496lbs)
Control Box Input Voltage and Rating 100 to 240VAC, 50/60Hz, 2A
Control Box Output Voltage DC 32V, 80VA
Actuator Input Voltage DC 24V
Duty cycle Maximum 10% 2min. ON / 18 minimum OFF
Maximum Load Push 8000N
Maximum Current  6A



Warranty

  • 1 year on Mechanical Parts
  • 2 years on Electronics
  • 3 years on Frame
