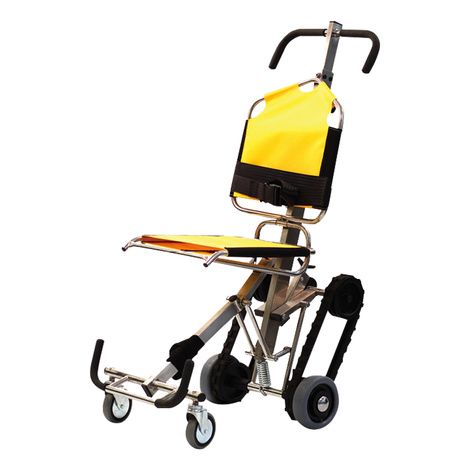

Evac Chair 700H IBEX Tran Seat Evacuation Chair

More Information

• Setting Up Evac Chair:
  - While standing behind the Evac Chair, hold it upright and rest one foot on top of the blue base frame crossbar to steady the chair
  - Using both hands, pull the handle upwards until the shoulder clips have clicked into place
  - Head restraint should not slide down the handle
  - While still standing behind the chair, undo the seat belt to release the skis
  - Pull these skis towards you to open the seat and push the seat part way downwards into position
  - Finally, pull up the seat frame against the ski to ensure it is in position
• For Traveling Short Distances:
  - You must remain in position behind the Evac Chair using both uprights of the handle to hold it firmly
  - Place one foot on the front wheel axle or on the bottom bar as your occupant transfers into the Evac Chair seated position
  - Depending on the condition of the occupant further assistance may be required with the transfer
  - Seatbelt must now be fastened and the head restraint may be used to assist with airway management if required
  - From the transfer position, remove your foot from the front wheel axle until the Evac Chair move backward and the front wheel comes into contact with the ground
  - Evac Chair will now balance between the bar of the frame and the front wheels
  - From the balance position, tip the chair off further seven centimeters backward that is about three inches and you will be able to move forward in the two-wheel position
  - This is the position to use for traveling short distances such as when turning and crossing still landings during descent
• For Use On Level Ground:
  - Evac Chair should be used in the four-wheel position like a wheelchair
  - To achieve the four-wheel position start from the vertical upright position, place one foot on the trolley assembly just over the yellow sticker and pull back sharply to unclip the trolley assembly
  - As you remove your foot, the trolley assembly will automatically open
  - You may then lower the chair gently onto its wheels
• For Stairway Descent:
  - Close the trolley assembly in an appropriate area of safety by placing the Evac Chair in a vertically upright position with the bottom bar of the frame on the ground
  - Place your foot on the yellow sticker and push the trolley assembly forward until it clicks back into place
  - Tilt the chair back into the two-wheel position and move forward to approximately 30 centimeters from the top of the stairs
  - Positioned at the inside edge, with one foot in front of the other and slightly apart, tilt the chair a little further back and push confidently over the top of the stairs
  - At all times stay near the inside edge of the stairs and make certain the skis make contact with the top two stair nosings
  - Never let go of the Evac Chair
  - Pause briefly and reposition your hands by sliding them upwards from the vertical position at each side of the handle onto the handles horizontal top crossbar
  - When descending, press downwards in a vertical direction for a smooth safe ride and move forward at the same smooth pace as the back chair
  - There should be no bumping action


Specification

Warranty

Lifetime Warranty
