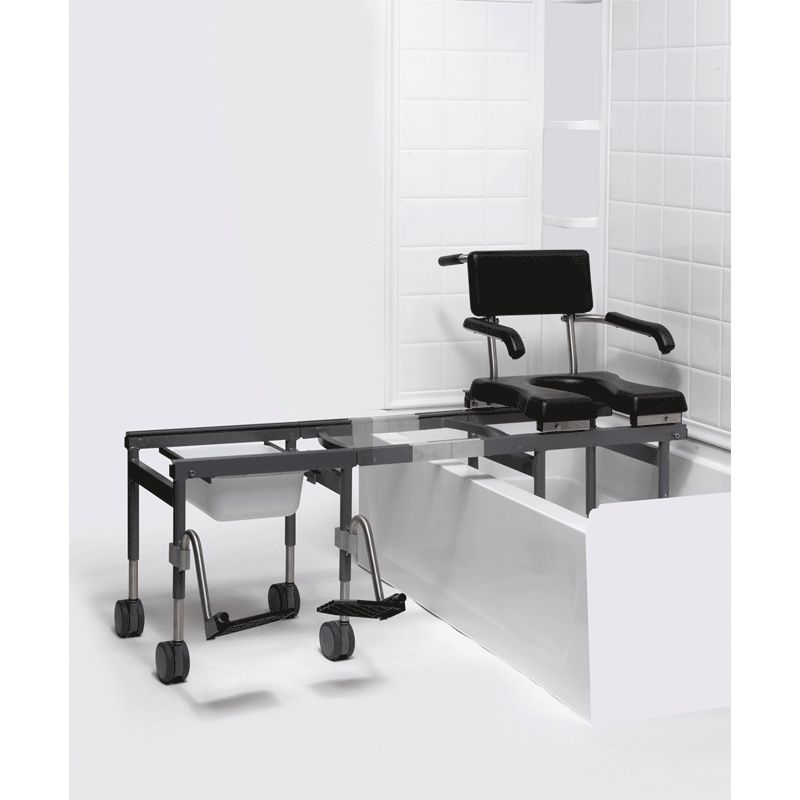

Columbia Versa Bath Shower and Commode Transfer System

Columbia Versa Bath Shower and Commode Transfer System

Brand/Manufacturer: COLUMBIA MEDICAL
Save
Authorized Retailer Badge
  • HyGiene Products
  • Non Returnable
  • FSA Approved

Columbia Versa Bath Shower and Commode Transfer System is multi-functional that reduces the need for multi pieces of equipment. Designed for independent use or with assistance. The Versa Transfer System is lightweight. Transfer system is made of high grade aluminum, stainless steel and padded polyurethane the Versa can be utilized as a bath transfer system, roll-in shower chair or even a bedside commode.

Features of Versa Bath Shower/Commode Transfer System

  • Compact, 18 x 18, tub base transfer frame that fits inside bathtub
  • Standard removable 13 bridge
  • Optional fixed bridge in 9 or 11 lengths
  • Optional adjustable bridges from 13" to 17" or 17" to 21" lengths
  • Locking system for added safety
  • Includes headrest, commode pail, footrests and locking casters

Item# 5100

  • ORDERING DETAILS
  • Total: $5898.75
    Total: $4537.49
Total: $5898.75
Total: $4537.49

Highlights- Versa Bath Shower/Commode Transfer System

  • Columbia Versa Bath Shower and Commode Transfer System includes:
    - Commode pail
    - Locking casters
    - Footrest
  • Can be used as:
    - Bath slider
    - Roll-in shower chair
    - Bedside commode
    - Over-the-toilet commode
    - Transfer chair
  • Has three components:
    - A polyurethane seating area with an opening that allows for enhanced bathing access as well as the ability to serve as a commode
    - A rolling base that is used for the initial portion of the transfer
    - A tub base that when connected to the rolling base engages the shuttle function for transfer
  • Height adjustments to fit over most toilets and tubs
  • Most suitable for young adults and up that require minimal positioning support
  • Flip up armrests and swing-away footrests
  • Shower door or curtain can be drawn when bridge is removed
  • Removable 13" bridge
  • Latex and silicone free
  • Note: Due to hygiene concerns this product is non-returnable
  • Also available:
    - Columbia Versa Shower and Commode Chair (Code 5110)

Benefits Of Versa Transfer System

  • Multi-Purpose Functionality:
    - Functions as a bath transfer system, rolling shower chair, bedside commode or over the toilet commode
  • Weight Capacity:
    - The Versa transfer system has highest weight capacity of any of transfer systems accommodating weights up to 300lbs
  • Safety:
    - Tub base is constructed with high-grade aluminum, which provides exceptional length and durability.
    - The slider safe auto-stop safety system ensures that the chair will not come off the base

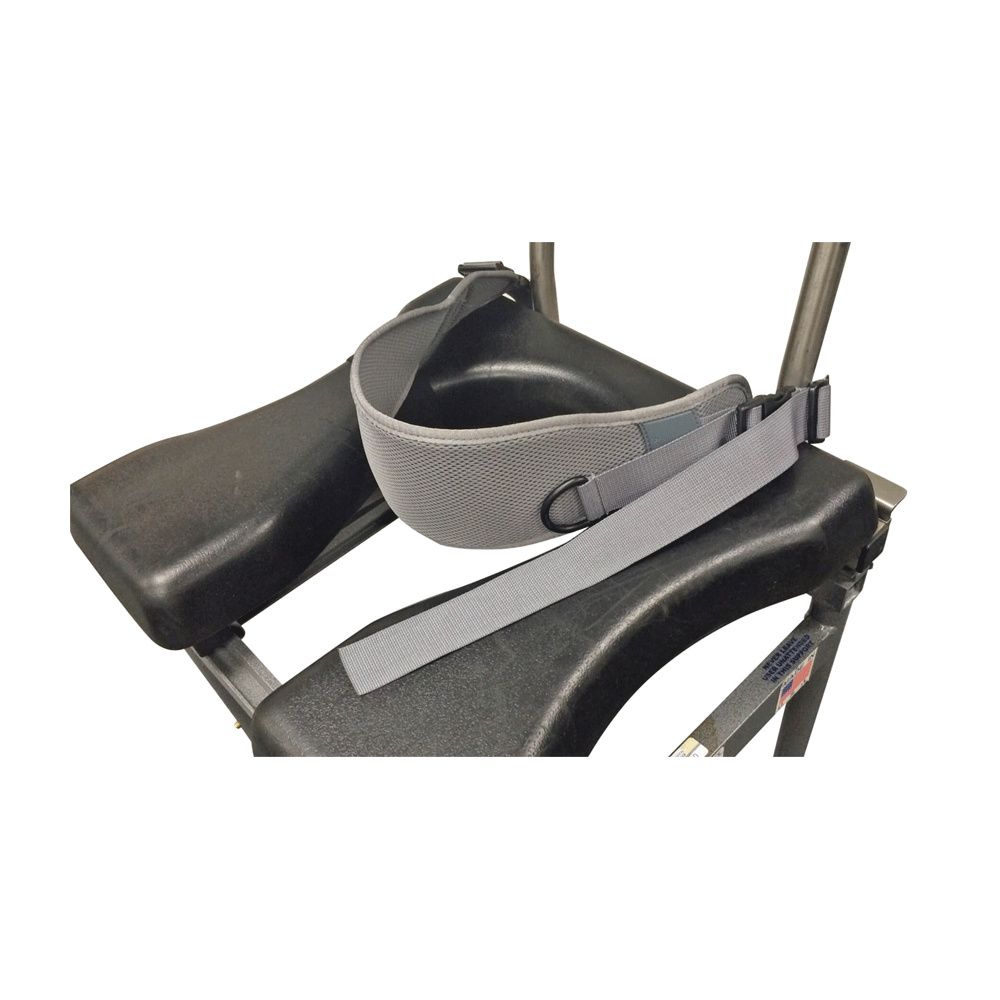

  • Pelvic positioning belt:
    - Available in two options: a standard version and an upgraded rapid dry version which offer two sizes (4" and 5"), both belts aid with improving posture and safety.
  • Adjustable Bridge:
    - Two adjustable length options (13 1/2" to 17 3/4" and 17 1/2" to 21 3/4") create flexibility to accommodate larger bathrooms

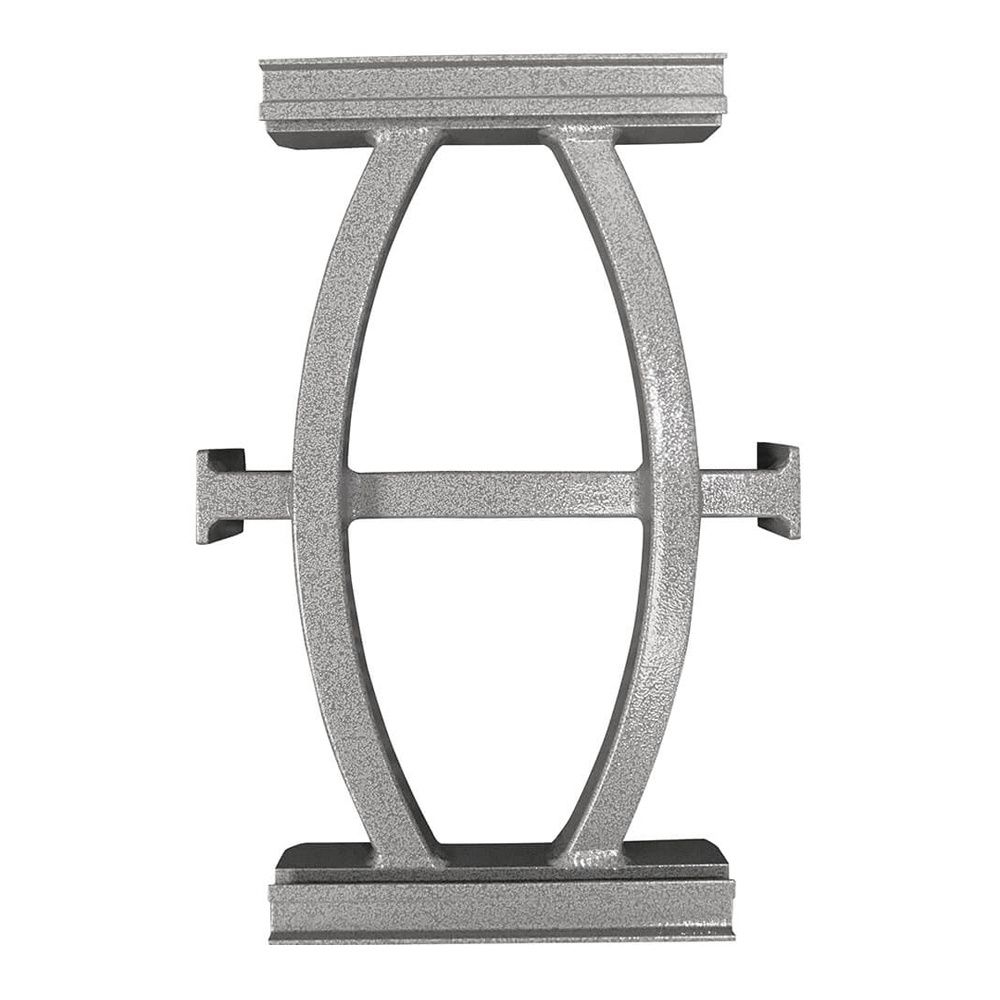

  • Fixed Bridge:
    -
    Two fixed length options 9" and 11"

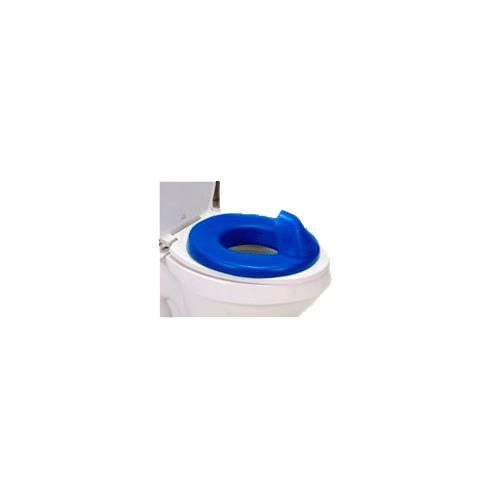

  • Padded Reducer Ring:
    - Use for those who require extended toileting time
  • - Includes replaceable abductor splash guard
    - Sanitary, seamless, easy to clean
    - Fits onto any toilet seat instantly 1.5" Thick
  • Footrest:
    - Provides foot support
  • Seat Lap Belt:
    - Used for additional safety and security
  • Instruction Manual

More About Bath Shower/Commode Transfer System

Precautions

  • Read and understand ALL instructions
  • To reduce the risk of injury or drowning, never leave the user unsupervised or unattended while using this product
  • Determine, with a physician or therapist, the suitability of this product for the intended user
  • Place your Versa Transfer System on a level surface, not near steps or other hazards.
  • Keep your Versa Transfer System clean and sanitary
  • Check regularly that all bolts, buckles, and other parts are tight and in good working order.

Operating- Versa Transfer System

  • Set the desired height on both tub base and rolling base by depressing the locking button on leg tubes and slide them up or down
  • Place the tub base inside the tub or shower.
  • Level the frame by adjusting the leveling feet making sure that the height of the rolling base is the same as tub base.
  • Lock the leveling feet in place with the jam nuts
  • Place the bridge in position to connect the tub base to the rolling base.
  • Be sure that the bridge sits in the indent slots so that it is flat with the top of the rails. If the bridge does not sit fl at, check the height adjustment on both bases.
  • The height must be the same on both bases for proper bridge fit and smooth transfers.
  • To transfer the seating frame, lift up on the safety latch located behind the seat, slide the seat to the desired position. The seat is in position when the safety latch locks on the other side of the transfer base
  • The bridge can be removed during use so the shower door or curtain can be closed

Cleaning - Versa Transfer System

  • Soapy water or mild cleansers may be used on all parts of your Versa Transfer System
  • Harsh abrasive cleaners (Ajax, Comet, etc.) may dull the finish

Specification

Options

Dimensions

Product Weight (Chair/Rolling Base): 40lb
Weight (Bridge):

4.8lb

Weight (Tub Base): 15lb
Weight Capacity: 300 lb
Overall Chair Depth with Footrests/without footrests: 40/28"
Overall Width (Chair): 21.5"
Seat Dimensions: 20"W x 18"D
Tub Base at Top: 20"W x 18.5"D
Tub Base at Bottom: 18"W x 18"D
Seat Hole: 9"W x 14.5"L
(a) Inside Seat Width: 19"
b) Back Width: 16.5;
(c) Back Height: 15"
d) Seat Height Adjustment Range (0.75 Increment): 24.5" to 27.5"
Overall Length (Transfer Base): 53"
Maximum Clearance Height (Toilet/Tub): 20"
Standard Connecting Bridge Length (Between Rolling Base and bath tub bench): 13"
Adjustable Bridge Lengths: 13.5" to 21.75"
Fixed Bridge Lengths Available: 6" to 12"
Heel to Knee Range: 17.5" to 23

Warranty

1 Year manufacture warranty
