Chattanooga Hydrocollator SS-2 Mobile Heating Unit

Chattanooga Hydrocollator SS-2 Mobile Heating Unit

Brand/Manufacturer: CHATTANOOGA GROUP
Save
Authorized Retailer Badge

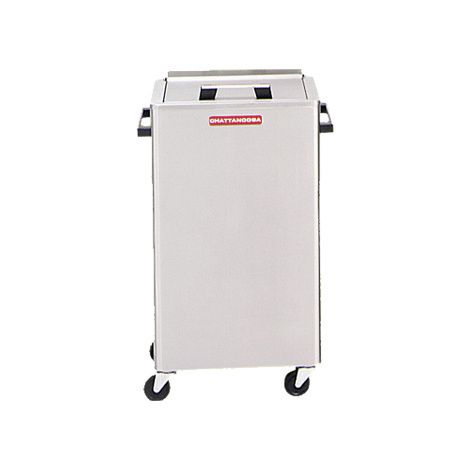

Chattanooga Hydrocollator SS-2 Mobile Heating Unit is a benchmark against which all other heating units are judged. Durable and easy to maintain this high quality stainless steel unit gives you a constant supply of temperature-consistent HotPacs. The three inch swivel-type rubber casters provides silent, friction-free movement of mobile units.

Item# 2302

  • ORDERING DETAILS
  • Total: $2159.69
    Total: $1943.72
Total: $2159.69
Total: $1943.72

Features

  • Chattanooga Hydrocollator SS-2 Mobile Heating Unit is Simple to fill and drain
  • Thermostatically controlled temperature
  • Easy maintenance
  • No plumbing required
  • Versatility for the smaller clinic
  • Also available (separately):
    - Chattanooga Side Table Rack (code 4010)
    - Chattanooga TM-1 Electric Lotion Warmer (code 4012)
    - Chattanooga Dial Thermometer (code 4228SER)
    - Chattanooga Extra Shelf (code 4230)

More Information

  • Caution:
    -
    The thermostat is extremely sensitive and the slightest adjustment will alter the temperature several degrees
    - The recommended operating temperature is 160° F to 166° F (71°C to 74°C)
    - The temperature of the water should be checked with a thermometer after every adjustment, before using the HotPacs
    - Always keep the water level over the top of the HotPacs to avoid burning or scorching of the packs
    - Never allow the HotPacs to dry after use
    - Check water level daily as it has a natural loss due to evaporation
    - Do not move the Hydrocollator while filled with water
    - Tipping over could result in burns to the user or others
    - Always unplug the Hydrocollator from the power source before attempting to empty water from unit
    - Make certain the unit is electrically grounded by plugging into a hospital grade electrical outlet with a ground terminal receptacle (U-groundoutlet), 120 VAC only
    - Always replace Hydrocollator HotPacs as soon as they show signs of wear

Specification

Particulars Details
Mains Power 110 to 120 V, 50/60 Hz
Power Consumption 1000W
Dimensions 21"L x 16"W x 33"H (53cm x 41cm x 84cm)
Tank Capacity 13 gal (49.32L)
Temperature Range 160°F to 165°F (71°C to 74°C)
Thermal Cut-Out Temperature 190°F ± 14°F (88°C ± 8°C)
Accuracy +/-10%
Heat Up Time to 160°F ( 70°C) 4 hour
Cool Down Time from 160°F (70° C) 2 hour
Fiberglass Insulation Yes

Warranty

1 Year warranty
