Chattanooga Galaxy TTET300 Scissor Frame Traction Table

Chattanooga Galaxy TTET300 Scissor Frame Traction Table

Brand/Manufacturer: CHATTANOOGA GROUP
Save
Authorized Retailer Badge

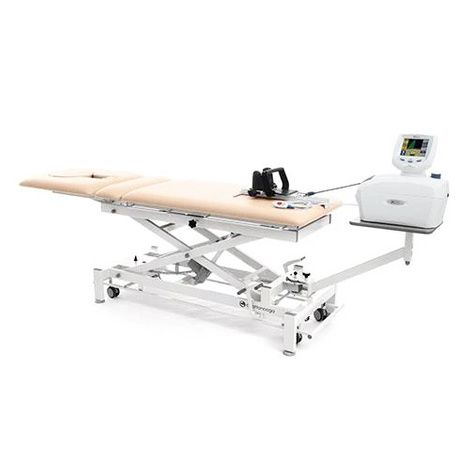

Chattanooga Galaxy TTET300 Scissor Frame Traction Table features a multidirectional table with retractable wheels and a multifunctional 3-section traction table which, in conjunction with a traction unit, allows for easy and efficient spinal traction treatment. Its roller-mounted surface helps prevent friction below the hips and legs, aiding in the full traction force during vertebral treatment. In addition, because the rolling sections can be locked in place, this variable-height traction table can also serve as an additional treatment table.

Note: Pictures Shown Are For Illustration Purpose Only. Chattanooga TX Traction System is sold separately on our website

Estimated Shipping Time: 25 Weeks

Item # Desc Pkg Price
3264101US Beige Each
$6020.45
$4631.09
3264102US Blue Each
$6020.45
$4631.09
3264106US Gray Each
$6020.45
$4631.09
3264107US Graphite Gray Each
$6020.45
$4631.09
3264108US Black Each
$6020.45
$4631.09
3264119US Imperial Blue Each
$6020.45
$4631.09

Chattanooga Galaxy TTET300 Features

  • A scissor frame with four feet and four multidirectional, retractable wheels for easy transport
  • Provides maximum patient comfort in prone and supine positions to aid both manual therapy and traction therapy
  • Roller-mounted surface helps prevent friction below the hips and legs
  • Repositional head /back section elevates to 82 Degree
  • Gas spring assists on friction-free moveable sections for easy positioning
  • HalloTronic System enables electric high/low height adjustment from 19 to 39 inches with a capacity up to 440 LBs
  • Also available (separately):
    - Chattanooga TX Traction System

Specification

Particulars Specification
Mains Power 120 V - 50/60 Hz
Current Max 2A with 120V
Dimensions

Width - 27.5 Inch

Total table length - 79 5 Inch

Total length with traction platform - 103 Inch

Adjustment

Angle Inclination - Head: -10° to +82°

Displacement - Leg: 6 Inch

Height - min: 19 Inch max: 39 Inch

Head/back section 23 Inch
Middle section 8 Inch
Leg section 44.7 Inch
Highest position 102 cm
Dynamic lifting capacity 440 Lbs
Maximum workload 605 Lbs
Weight Max. 274 Lbs
Electrical Safety Class Class I, Type B
Safety test CE, class I rule 12
