Leg Chest Dynamometer Features
- The unit has a stable base for secure footing during measurements
- The pointer remains at the highest strength reading until you reset it
- It is designed to measure the strength of back, leg, and chest muscles
- The strength reading can be displayed in pounds or kilograms
- The chain length can be adjusted to accommodate height differences or vary the point of force application
- It is certified to meet European Conformity standards
- Comes with a protective case for easy transport and storage
Frequently Bought Together

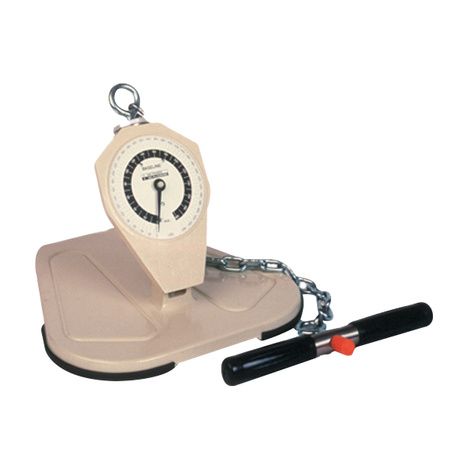

Leg Chest Dynamometer Parts
The following parts make up the Back-Leg-Chest dynamometer: Body (face), Dial, Pointer, Footstand (base), Grip and Chain. Locate all of these parts.
To assemble your unit:
1) Locate and remove contents from packaging.
2) Attach handle/chain unit to swivel on top of face by using adjustable chain link. Make chain shorter by putting adjustable chain link higher on the chain. If chain is not long enough obtain additional chain footage (stock number 12-0443). Unit is now ready for use.
Testing Protocol
- Subject should stand with both feet on base. (see picture on upper right corner of previous page)
- Adjust chain to accomodate test protocol. Perform the test. Subject should lift in a gradual vertical motion.
- The pointer on the dial indicates the force exerted. Each test should consist of three trial measurements. The result is the average.
Indications of Back Strength Dynamometer
- Muscle strength measurement
- Job task analysis
- Functional capacity evaluation (FCE)
Specification
|
Code
|
Base |
Weight Capacity |
|
12-0402 (Child)
|
18" x 18" |
165lb (75kg) |
|
12-0401 (Adolescent)
|
18" x 18" |
330lb (150kg) |
|
12-0400 (Adult )
|
18" x 18" |
600lb (272kg) |
|
12-0403 (Adult)
|
24" x 24" |
660lb (300kg) |
