Everyway4All CA215 Multima 6-Section Multi-Purpose Chair

Everyway4All CA215 Multima 6-Section Multi-Purpose Chair

Brand/Manufacturer: EVERYWAY MEDICAL INSTRUMENTS
Save
Authorized Retailer Badge

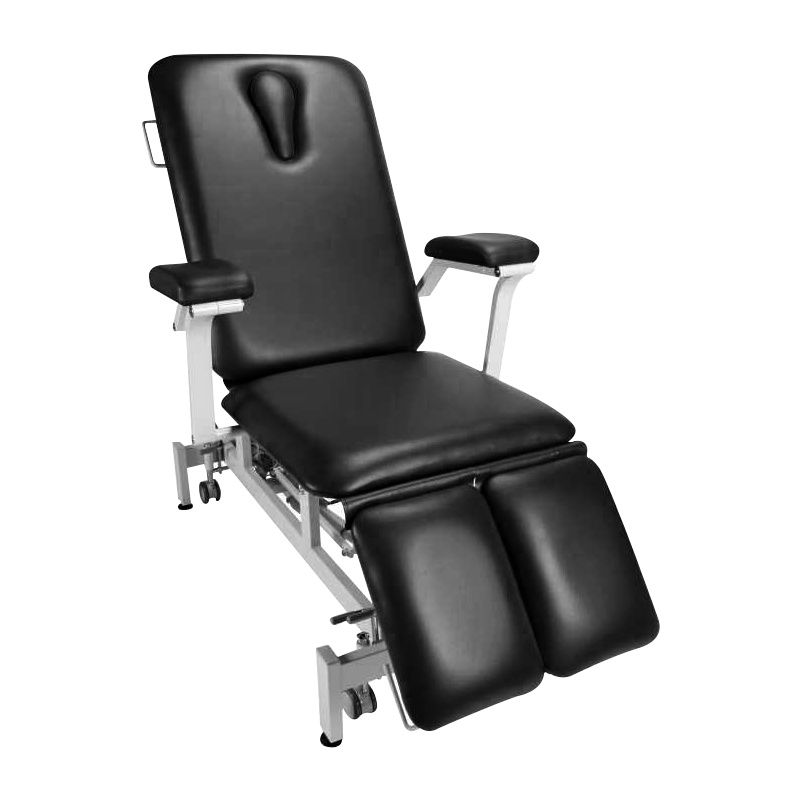

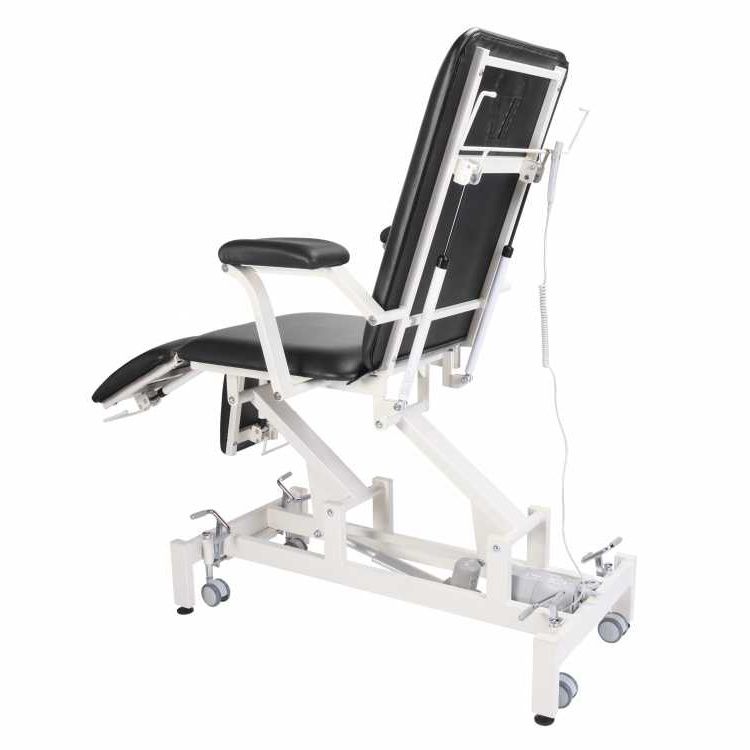

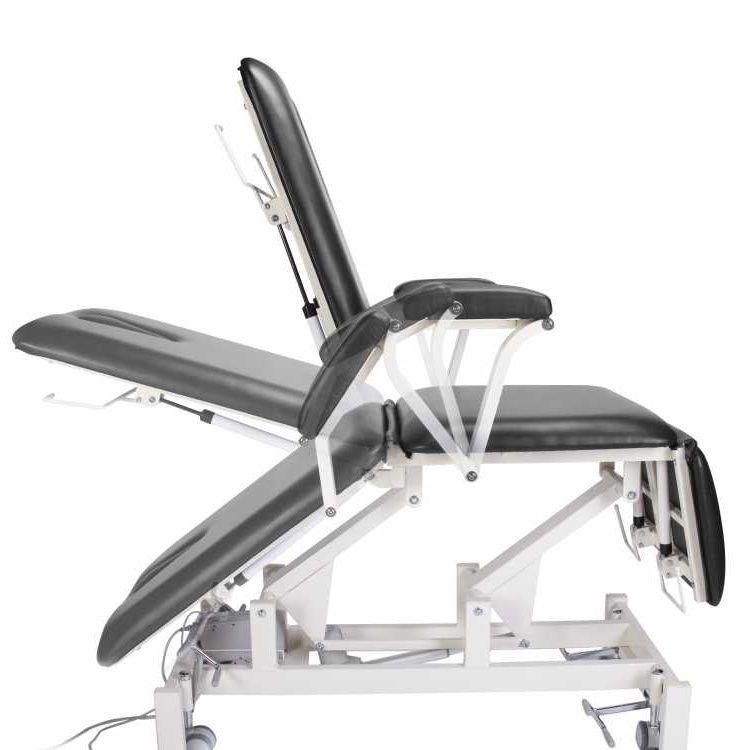

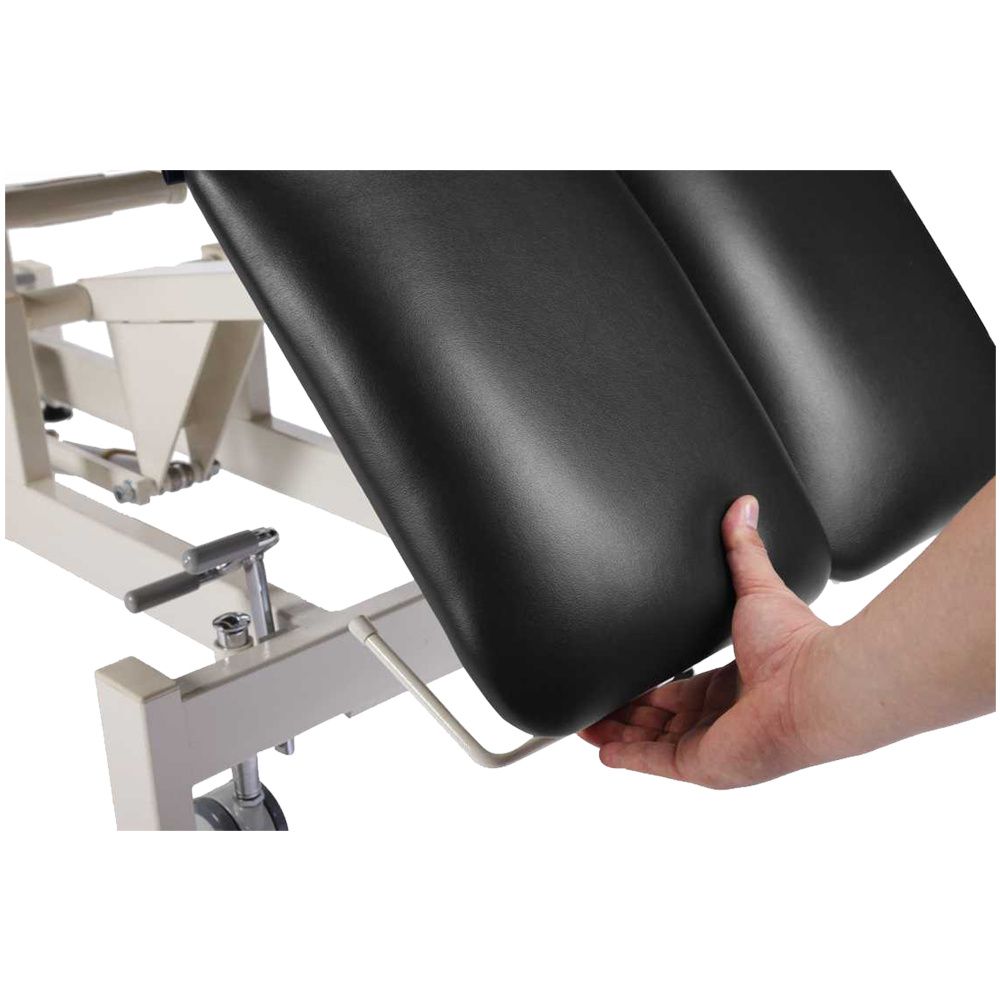

Everyway4All CA215 Multima 6-Section Multi-Purpose Chair is one of the most versatile examination chairs. It is equipped with a pair of very strong arm rests that moves together with the back rest when inclined or reclined. The arm rests are bolted straight on the base frame and support frame. It is also equipped with dual leg sections which can be moved individually from horizontal to vertical position (downward 90º). The back rest can be inclined to 80 degrees and reclined to -40 degrees. Both leg and back rests are supported by dual 180N gas struts to provide a user with smooth movement and lock-in position.

Item # Desc Pkg Reward Price
CA215 Blue Each $48.82
$2359.85
$1627.49

Features

  • Everyway4All CA215 Multima 6-Section Multi-Purpose Chair has retractable castors at both ends
  • 1 x Motorized Actuator for Hi/Lo adjustments
  • Twin oversized pillars for added stability
  • Individual leveling foot on all 4 corners
  • Twin gas struts for solid back and leg section support
  • A single arm rest is able to hold a person’s body weight of up to 90kgs (198lbs)
  • User Manual

More Information

  • Safety Instructions:
    • Prior starting to use the table, it is important that you read and understand this manual
    • You may also consult this manual whenever you;re in doubt about using the table
    • This devise MUST BE USED under the supervision of a licensed practitioner
    • Use only the original accessories that is manufactured by Everyway Medical Inst. Co., Ltd. for the table
    • DO NOT USE the table in "Wet Rooms" - Hydrotherapy Rooms
    • Keep the table away from direct heat and/or fire
  • Warnings:
    • Please make certain that Electric Couches /Tables are not used in the presence of flammable gases such as anaesthetic agent
    • Do not sit on the edge of Head or Foot Section of a couch or table as possible damages to the (1) Gas Struts and/or (2) Gas Strut Handle Bar may occur. Standard Load of a couch or table is rated at which the loading weight is distributed evenly across the working surface but not on a specific area or side of table top
    • It is hazardous to exceed the rated maximum load of a couch or table
    • The operation Electric couch or table requires the Power Cord securely plugged-in to the wall utility power. When the Power Cord is unplugged, it does not operate unless the couch or table is equipped with a backup battery
    • Use only the original accessories that are manufactured by Everyway Medical Inst. Co., Ltd. for a table or couch
    • Children MUST be refrained from using any tables or couches by means of operating a hand or foot control nor Elevating Bars
  • Cautions:
    • Before allowing a patient to lay on the couch or table, please ensure that the Leveling Foot at each corner is LEVELED & RESTING on the floor securely after the castors are retracted. If not, please adjust the leveling foot accordingly to stabilize the table
    • Check any trapped power cords or cables underneath the couch or table while moving the table
    • Keep any persons; limbs away from all moving parts of a couch or table especially when the table is being moved from one place to another
    • When applying electrotherapy to a patient, please keep his or her body away from any contacts with metal parts of the couch or table
    • Please familiarize yourself with the operation of all various controls of actuator and gas struts to avoid inadvertent actuation of table sections

Specification

TECHNICAL SPECIFICATIONS
Minimum Height 460mm (18.11”)
Maximum Height 910mm (35.83”)
Table Top Width 700mm (27.56”)
Back Rest Section Length 850mm (33.46”)
Seat Section Length 640mm (25.19”)
Leg Section Length 410mm (16.14”)
Total Length 1955mm (76.97”)
Back Rest Tilt Angles -40º to +80º
Leg Tilt Angles -90º to 0º
Lift Mechanism Electric
Breathing Hole/Plug 1
Retractable Castors 4
Weight Rating (Max. Load) 225kgs (496lbs)
CONTAINER LOAD CAPACITY
20ft 24 tables
40ft 52 tables
40ft HQ 65 tables
ELECTRICAL DATA
Control Box Input Voltage and Rating 100~240VAC, 50/60Hz, 2A
Control Box Output Voltage DC 32V, 80VA
Actuator Input Voltage DC 24V
Duty cycle Maximum 10% 2 minute ON / 18 minute OFF
Maximum Load Push 8000N
Maximum Current 6A

Warranty

  • 1 year on Mechanical Parts
  • 2 years on Electronics
  • 3 years on Frame
